FULL DESCRIPTION of Item 89761

in Automatic Ball Bonders
Item ID: 89761

Offered 1 Offered at Best Price


K&S 9388 LaserPro

Automatic Ball Attach System BGA/CSP

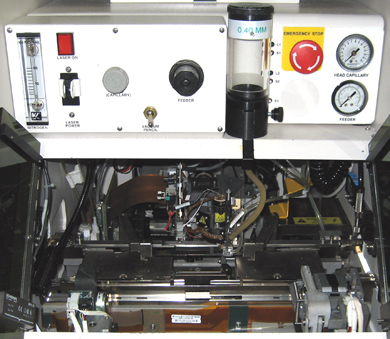

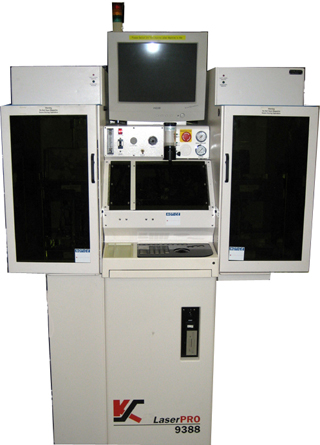

K&S 9388 LaserPro
  Click to see additional image(s)... other images

Location: Plano, TX, United States
Unit Price Unstated
Number of Units 1
Manufacturer Kulicke & Soffa
Model 9388
Description Automatic Ball Attach Tool BGA/CSP
Other Information
  • Serial Number DA0201-310006 Date of Mfg: 2000
  • Attaches Solder Balls to Work Surface by Irradiating it with Laser Light
  • Automatic Material Handling System
  • 50mm (X) x 50mm (Y) Placement Area
  • 100,000 Balls Placed Per Process Program
  • 100 – 800 um (dia) Ball Size Range
  • 150 Alignment Points per Process Program
  • 100 Reference Points per Process Program
  • Pattern Recognition System
  • Class 1 Laser System with Embedded Class 4 Laser
  • 915 nm Output Wavelength
  • 40 Watts Maximum Output Power – Class 1 Laser System
  • 8 Watts Maximum Output Power – Embedded Laser Diode (continuous-per diode)
  • 0 to 100 msec Pulse Duration – Programmable in 0.1 msec increments
  • 115V 27 Current(A) 50/60 Hz 1 Phase
Power Requirements 115 V     27.0 A     50/60 Hz     1 Phase
