FULL DESCRIPTION of Item 225795

in FT-IR Spectrometers

Item ID: 225795

1 Offered at $ 110,000.00

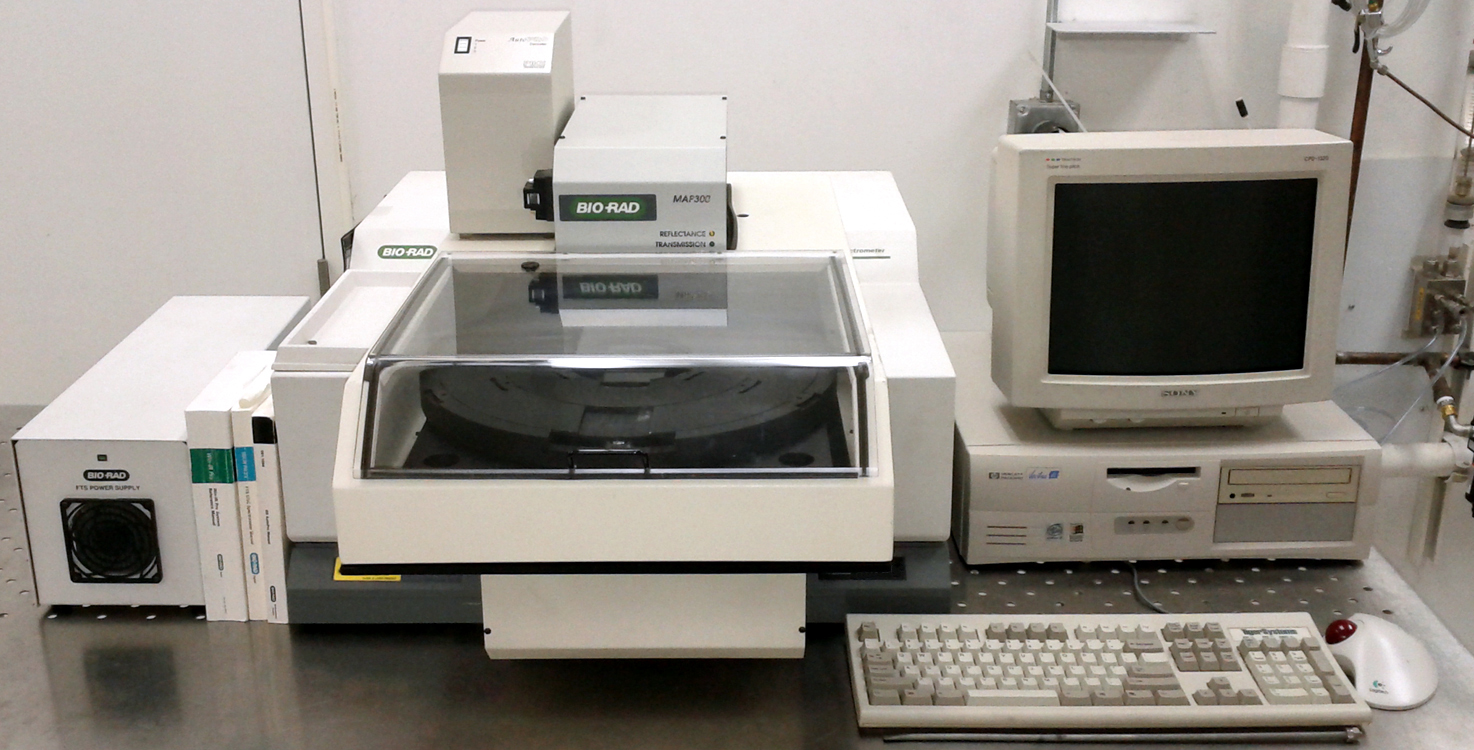

Bio-Rad QS-1200 FT-IR Spectrometer

BIORAD QS-1200 Automated FT-IR Spectrometer
Non-Destructive Measurement of Epitaxial Silicon Films

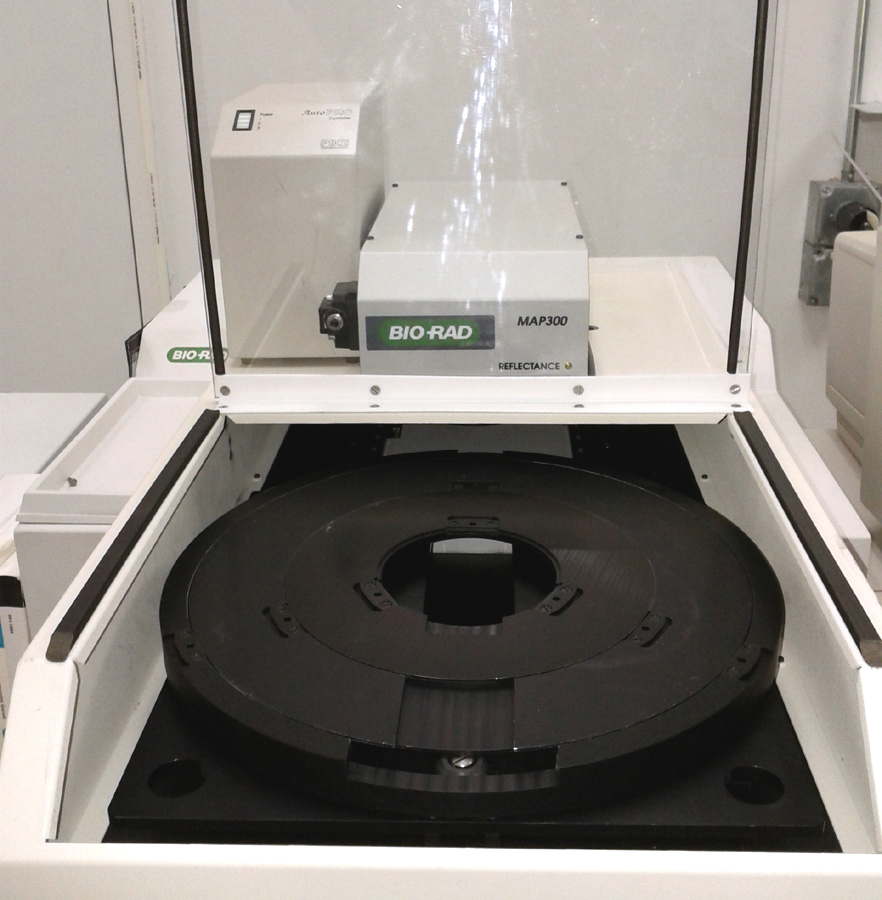

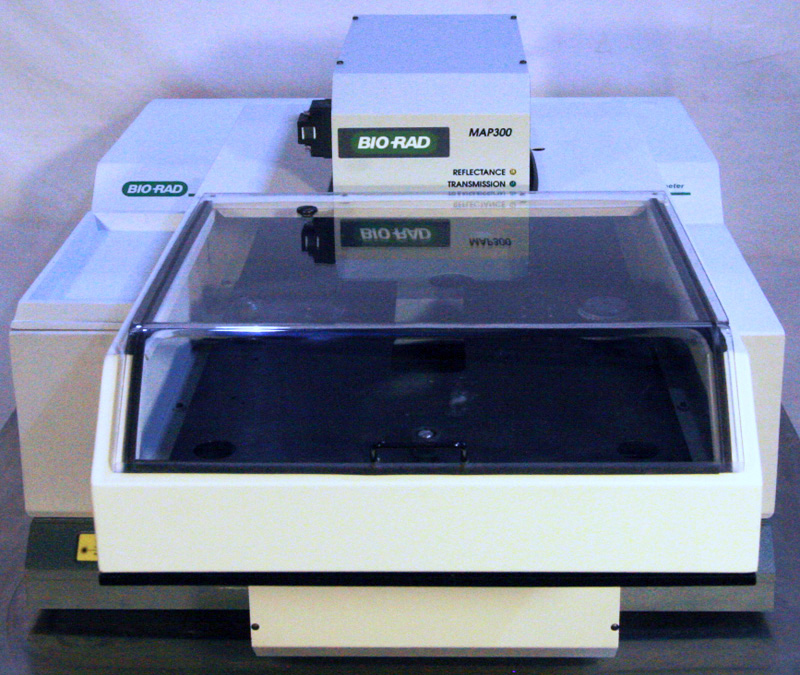

PIKE TECHNOLOGIES MAP300 Automatic Scanning Stage
Manual Loading for up to 300mm Wafers
320 Test Points, 5mm Minimum Edge Exclusion & 3D Wafer Mapping
FTS-175 Optical Bench
Dynamically Tuned Beam Splitter
NKBr Beam Splitter
Dual Frequency IR Source
Upgraded HeNe Laser
System Control PC with Windows XP, 320G HD & 1G RAM
Win-IR Pro (Rev. 2.51) Application Software
QS-500 Epi (Rev. 1.31) Application Software
Microsoft Access Database Application
System Software, Applications Software & Site Preparation Manuals Included
Refurbished & Fully Functional

Location: Plano, Texas, United States

Unit Price $ 110,000.00

Number of Units 1

Manufacturer Bio-Rad

Model QS-1200

Wafer Size Range
  Minimum 75 mm

  Maximum 200 mm

Wafer Mapping YES

Scanning Stage YES

Controller Type PC Controller Type

Accessories
Pike Technology MappIR Programmable Stage

Condition Excellent

Refurbished YES

Power Requirements 120 V     1 Phase
